LUNEX LX-630A

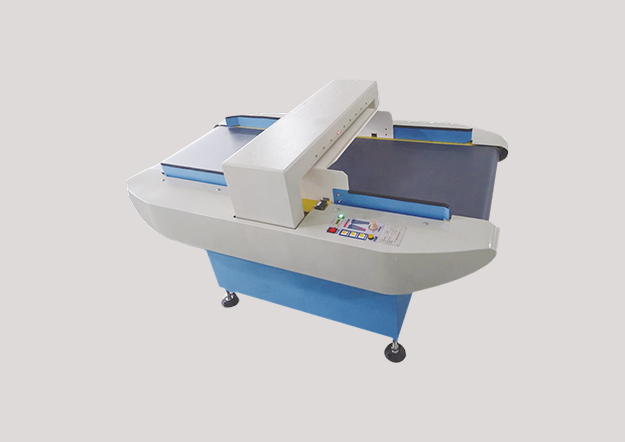

LUNEX Single Head Needle Detector
MAIN FEATURES
- Cycled, 9 pairs of sensor, excellent antidisturbance performance.

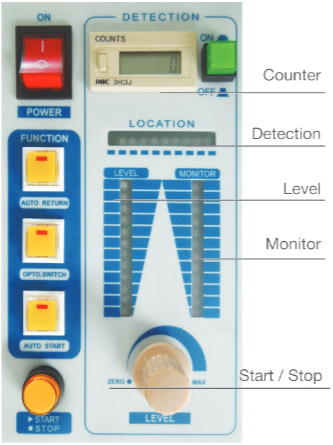

- Based on LED bar displayed control panel.
- High accuracy detection locating technology, LED indication.
- Level setup indication and real-time sensitivity display.
- Optional conveying mode after alarm.
- Optional automatically restart.
- Reliability mechanical frame design, high stable during detection.
- Designed for universal AC power supply, switch power supply.
TECHNICAL SPECIFICATIONS
| MODEL | LX-360A |
|---|---|
| Detection Method | Magnetic Induction |
| Detection Sensitivity | 0.8mm Steel to Small Scissors |
| Detection Adjustment | 10 Steps |
| Detection Width | 600mm |
| Alarm Method | Buzzer, LED and Belt stop |
| Belt Speed | 32m/min(50Hz), 40m/min(60Hz) |
| Power Source | AC200-240V 50-60Hz |
| Rated Output | Approx. 140W |
| Dimension (L*W*H) | 1650mm x 1050mm x 900mm |
| Weight | Approx. 220Kg |
SENSITIVITY
| HEIGHT | DETECTION SENSIBILITY | REMARK |
|---|---|---|
| 100mm | 0.8mm steel to small scissors | Standard Type |
| 120mm | 1.0mm steel to small scissors | Option at Factory |
| 150mm | 1.2-1.5mm steel to small scissors | Option at Factory |
| 200mm | 1.5-2.0mm steel to small scissors | Option at Factory |
| 300mm | 2.5-3.0mm steel to small scissors | Option at Factory |
