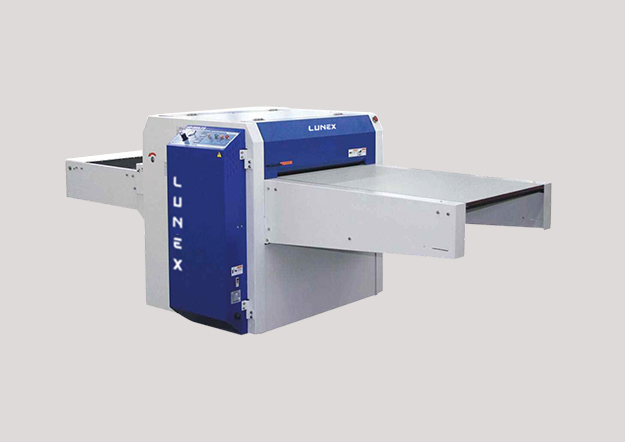

LUNEX LX-600LFS
LUNEX Pneumatic Linear Fusing Machines
MAIN FEATURES
- Snake-shape device eliminates devitation.
- Steady prenumatic press system.
- Transcalent TFLON belt, single, double, side press, new stripping system.
- With auto-stop and manual-stop functions.
Technical Specifications
| MODEL | LX-600LFS | LX-900LFS | LX-1200LFS | |
|---|---|---|---|---|
| Power Supply | 3P-Phase | 3P-Phase | 3P-Phase | |
| Rated Output | Heater | 8.4KW | 12KW | 14KW |
| Motor | 225/275W | 270/295W | 270/295W | |
| Temperature (Max) | 195°C | 195°C | 195°C | |
| Pressure (Max) | 6.2N/CM (6.04KG F/CM) | 41N/CM (4.02KG F/CM) | 41N/CM (4.02KG F/CM) | |
| Belt Speed (Max) | 10.2M/Min | 10.2M/Min | 10.2M/Min | |
| Heating Time | 6-28SEC | 6-28SEC | 6-28SEC | |
| Fusing Width | 600MM | 900MM | 1200MM | |
| Dimension | L | 3100MM | 3300MM | 3300mm |
| W | 1190MM | 1490MM | 1500mm | |
| H | 1200MM | 1200MM | 1200MM | |
| Net Weight | 380KG | 450KG | 560KG | |
